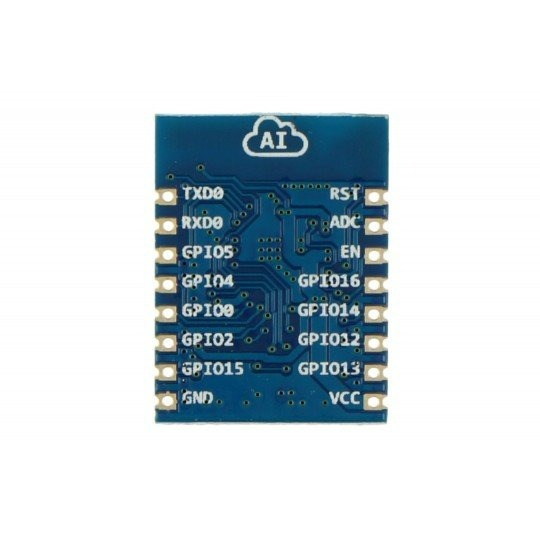

ESP8266 ESP-07 โมดูล WiFi ESP8266 ต่อเสานอก

ESP8266 has powerful on-board processing and storage capabilities that allow it to be integrated with the sensors and other application specific devices through its GPIOs with minimal development up-front and minimal loading during runtime. Its high degree of on-chip integration allows for minimal external circuitry, and the entire solution, including front-end module, is designed to occupy minimal PCB area.

Corresponding Interface:

•     SDIO 2.0, SPI, UART
•     32-pin QFN package
•     Integrated RF switch, balun, 24dBm PA, DCXO, and PMU
•     Integrated RISC processor, on-chip memory and external memory interfaces
•     Integrated MAC/baseband processors
•     Quality of Service management
•     I2S interface for high fidelity audio applications
•     On-chip low-dropout linear regulators for all internal supplies
•     Proprietary spurious-free clock generation architecture
•     Integrated WEP, TKIP, AES, and WAPI engines

Specification:

• 802.11 b/g/n
• Wi-Fi Direct (P2P), soft-AP
• Integrated TCP/IP protocol stack
• Integrated TR switch, balun, LNA, power amplifier and matching network
• Integrated PLLs, regulators, DCXO and power management units
• +19.5dBm output power in 802.11b mode
• Power down leakage current of <10uA
• Integrated low power 32-bit CPU could be used as application processor
• SDIO 1.1/2.0, SPI, UART
• STBC, 1×1 MIMO, 2×1 MIMO
• A-MPDU & A-MSDU aggregation & 0.4ms guard interval
• Wake up and transmit packets in < 2ms
• Standby power consumption of < 1.0mW (DTIM3)
